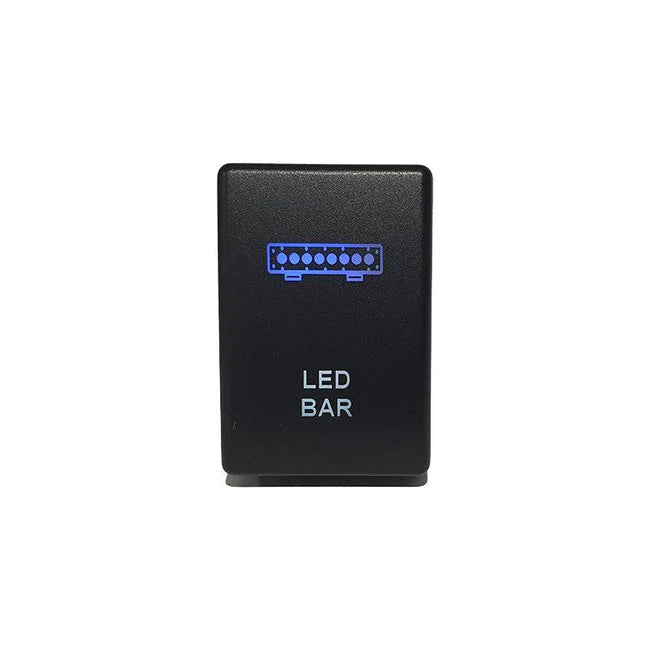

LightForce LED Bar Switch to suit Isuzu/Mazda

The text illuminates white via the dash light circuit. Once the switch is pushed on, the upper icon window illuminates blue.

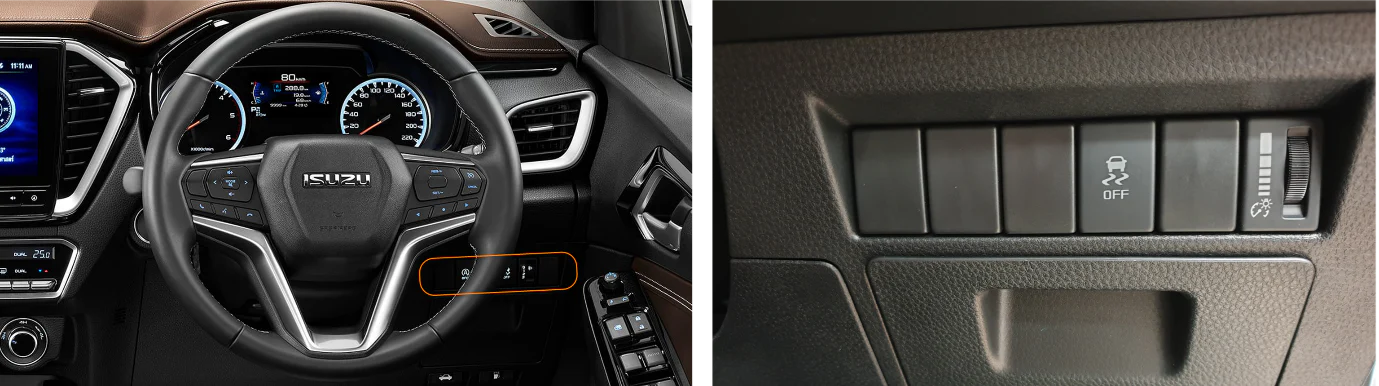

This factory-style LED bar switch is designed specifically to fit 3^rd Generation vehicles only and will fit into the original dashboard, (right-hand side of the steering wheel) without any modification.

Specifications include:

• Switch cut out size is 20mm x 31mm

• Housing material black PVC

• Single switch input

• Dual LED illumination

• Suitable for positive switched vehicles only

• Harness included (300mm in length)

• Current rating 3 amps @ 12v (must be used in conjunction with a relay)

Harness compatibility:

Compatible with Lightforce Single Switch 8 Pin Adaptor # SWADP4. This enables direct connection to Lightforce Harness part number STRIKERLEDHARN (Striker LED Harness).
